USB-RS485
| USB-RS485 converter for accessing the RS485 bus. |  |

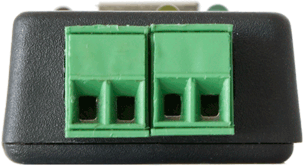

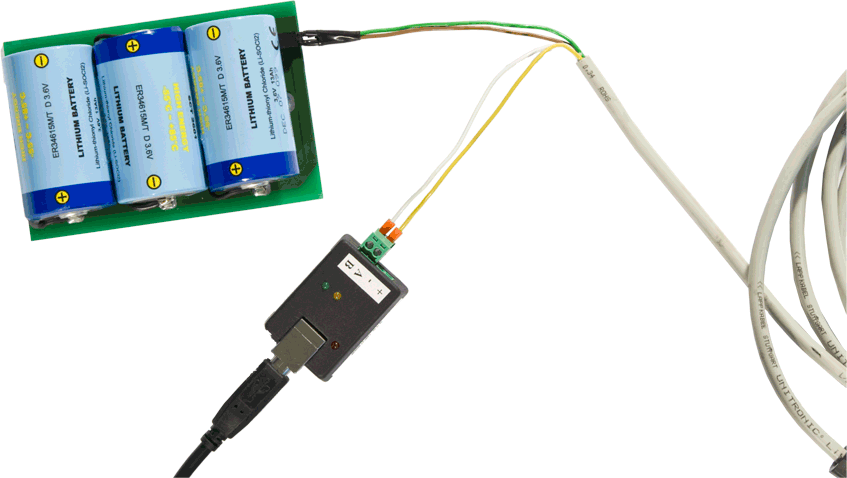

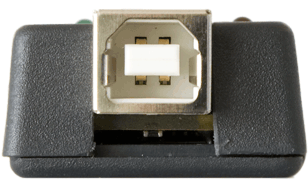

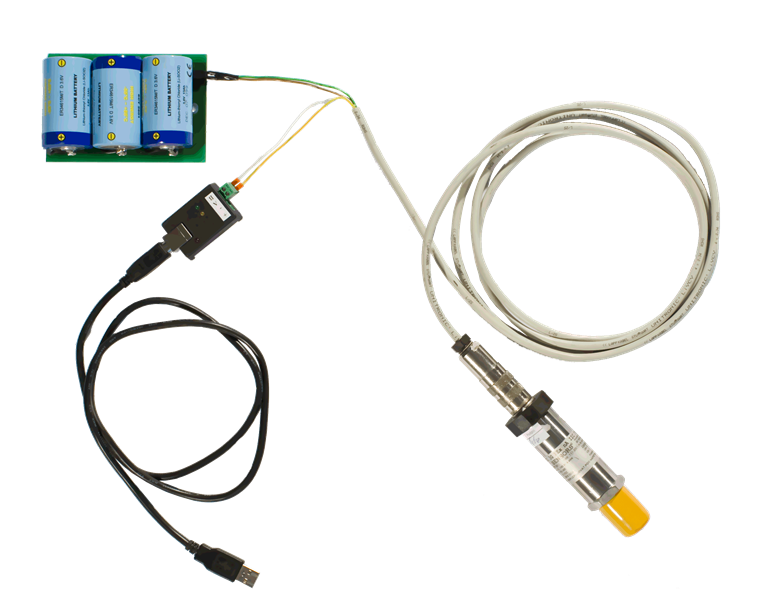

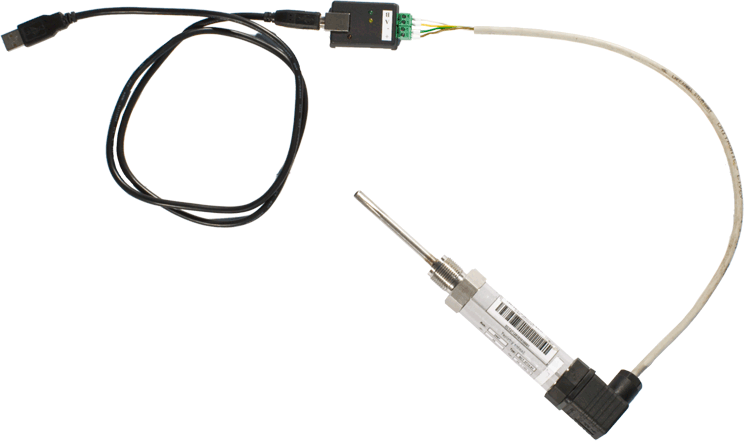

The USB-RS485 converter is used to connect sensors with an RS485 interface to a computer via a standard USB interface. Using the converter, the RS485 interface is converted to USB. It is a converter used for service and programming purposes. Most often, the converter is used to set the addresses of sensors communicating with the ModBus protocol. The converter has removable screw terminal blocks, through which the sensors are connected to the converter.
Technical parameters of the converter
| Powering the converter | from USB port PC (5V/100mA max.) |
| Sensor power supply | from converter (5V/200mA) / from external |
| Bus type | without termination, with a defined rest state |
| Load capacity of the RS485 bus | max. 64 devices |
| Type of communication | half duplex, multimaster |
| Transfer speed | up to 1 Mbps |
| Communication Switching (Transmit/Receive) | automatic, independent of transmission speed and format |
| Temperature range | -40°C to +85°C |
